Pneumatic Tyre Mobile Ship Unloader

Pneumatic ship unloader - tyre mobile pneumatic ship unloader and  subsequent pipeline positive pressure transmission


轮胎移动式气力卸船机
          

This project is cement unloading by positive pressure conveying material project in Brunei, with the capacity of 200TPH for unloading the 10000DWT ship, and the subsequent method is positive pressure pipeline transportation of bin pump to the silo. It is the first EPC project undertaken by our company overseas, including silo and packaging metering equipment.



Pneumatic Ship Unloading System

The pneumatic ship unloading system uses negative pressure to mix materials with a certain amount of air through the suction nozzle and then send them to the separation device through the feeding pipe on the suction arm. After the materials are separated from the air, they fall down and enter the conveying machinery to send out or enter the positive pressure conveying equipment. The positive pressure generated by the air compressor will send the materials to the bulk material silo(bin) through the feeding pipeline.

The unloading and conveying capacity of the pneumatic system includes 20t/h, 50t/h, 100t/h, 150t/h, 200t/h, 300t/h and above.

气力卸船系统


气力卸船系统

气力卸船系统


XS series is a fixed negative pressure ship unloader for bulk materials developed and manufactured by our company. It uses Roots blower (vacuum pump) to generate negative pressure and delivers materials to the separation device through the suction nozzle. After the separation of materials and air, the materials are transported to the bulk material silo through subsequent pipes or mechanical devices.。

 XS2C series products are fixed double bin pump negative pressure ship unloaders designed and manufactured by our company. After the material is pumped, it is separated from the material and air. The material falls into pump A first. When pump A is full, the material is transported to the storage silo through pipes. Pump B starts to feed when pump A is emptied. The use of double bin pump can ensure the continuous pumping and conveying process of materials and improve the working efficiency.

固定式散装物料负压卸船机

固定式散装物料负压卸船机

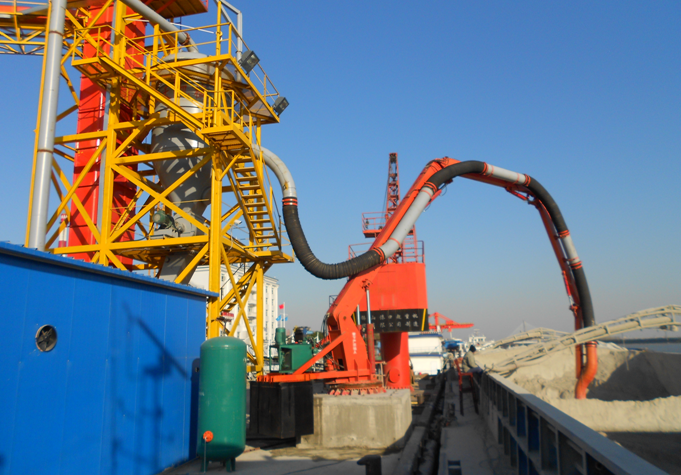

M-XS and T-XS series are vehicle mounted ship unloaders and rail mounted ship unloaders developed and manufactured by our company. The whole M-XS vehicle mounted ship unloader can move flexibly on the port, and is suitable for users without fixed dock location. The complete T-XS rail mobile ship unloader can move flexibly on the track, and is suitable for large docks laying the running track of ship unloaders.

卸船机

卸船机



卸船机

卸船机

The pneumatic ship unloader is easy to clear, flexible to operate, clean and efficient. It is an environment-friendly and energy-saving ship unloading equipment with low comprehensive operation cost.
